IROAD OBD POWER CABLE_IM-300

easy to install, Plug and play

Iroad OBD power cable
(2nd Generation)
IM-300

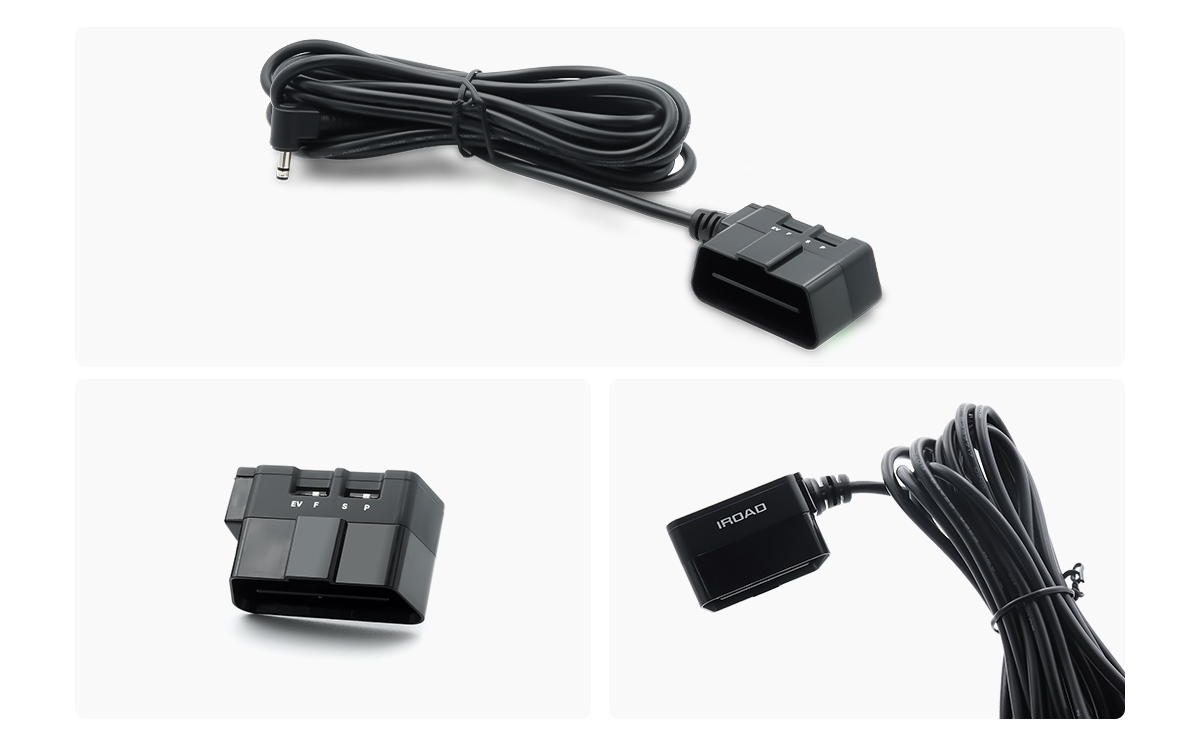

IM-300 offers the user an easier, Plug & Play powering option to install a dash camera by connecting directly to the OBDII port of the vehicle, reducing the risk of damaging the wiring of the vehicle.
It also better protects the vehicle through its overcurrent cut-off circuit design.

Feature

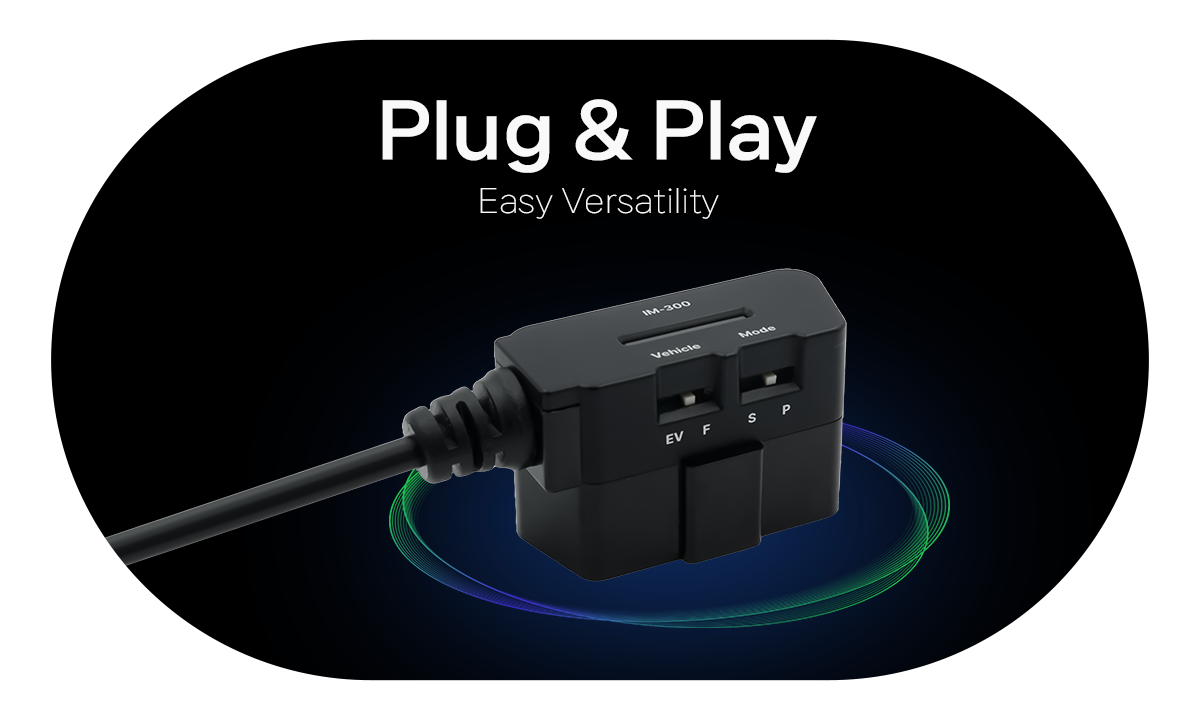

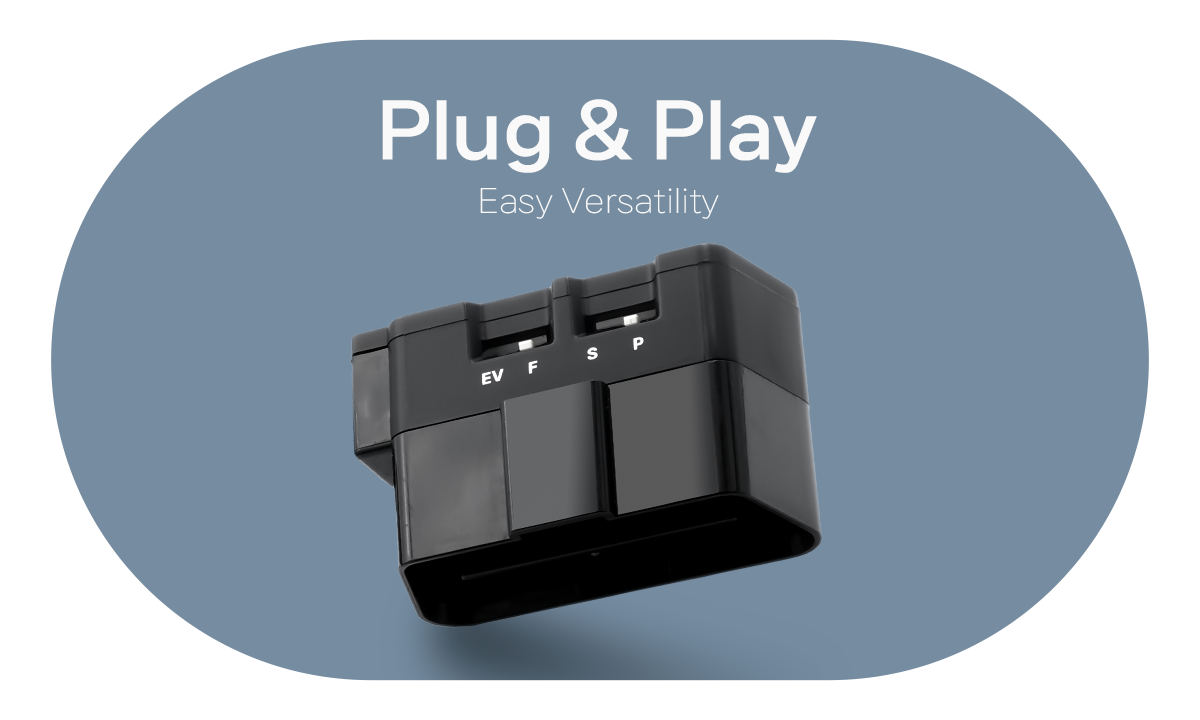

Plug, Play & Forget

The IM-300 OBDII Power Cable is a Plug, Play & Forget alternative to the classic dash cam hardwiring cable.
With a no-frills, quick setup, anyone can install a dash cam using the IM-300, with no need for professional installation services.

ONE cable for ALL
vehicles

The OBDII power cable is compatible with both Fuel and Hybrid/EV vehicles.
By simply adjusting the Vehicle Type switch (F/EV) on its connector, the OBDII power cable can be set to work on any type of vehicle, as needed.

EV: EVs | F: Fuel & Hybrid

*IM-300 is also compatible with 24V vehicles
(trucks or commercial vehicles).

Parking Mode
Enabled

Just like the classic hardwiring fuse cable, the OBDII power cable also enables 24/7 Parking Mode recording.
Through a Recording Mode switch on the cable’s plug connector, users can choose to turn ON/OFF the parking mode recording capability:

S: Driving Mode Only | P: Driving & Parking Mode

LED
Check power stat through LED
Built-in G-sensor
G Sensor and Voltage driven scenario

SET Recording Mode
Switching S / P
STOP & GO supporting
Operating on STOP & GO vehicles

Overcurrent cut-off
Circuit designed to protect overcurrent
SET Vehicle Type
Switching EV / Fuel & HEV

SPECIFICATIONS

Product	IROAD OBD POWER CABLE
Model	IM-300
Input voltage	DC 12~24V
Output Voltage	DC 12~24V, Max 2A
Length	2M
Operating Temperature	-40~85℃
Overcurrent Cut-Off	Min 3.4A
Manufacturer	IROAD MOBILITY CO., Ltd
Country of Origin	South Korea
Certifications	FCC, CE, KC

Instructions Manual

Download

Note

MOBILE

easy to install, Plug and play

Iroad OBD power cable
(2nd Generation)
IM-300

IM-300 offers the user an easier, Plug & Play powering option to install a dash camera by connecting directly to the OBDII port of the vehicle, reducing the risk of damaging the wiring of the vehicle.
It also better protects the vehicle through its overcurrent cut-off circuit design.

Feature

Plug, Play & Forget

ONE cable for ALL
vehicles

The OBDII power cable is compatible with both Fuel and Hybrid/EV vehicles.
By simply adjusting the Vehicle Type switch (F/EV) on its connector, the OBDII power cable can be set to work on any type of vehicle, as needed.

EV: EVs | F: Fuel & Hybrid

*IM-300 is also compatible with 24V vehicles
(trucks or commercial vehicles).

Parking Mode
Enabled

Just like the classic hardwiring fuse cable, the OBDII power cable also enables 24/7 Parking Mode recording.
Through a Recording Mode switch on the cable’s plug connector, users can choose to turn ON/OFF the parking mode recording capability:

S: Driving Mode Only | P: Driving & Parking Mode

Overcurrent cut-off
Circuit designed to protect overcurrent
SET Vehicle Type
Switching EV / Fuel & HEV

LED
Check power stat through LED
Built-in G-sensor
G Sensor and Voltage driven scenario

SET Recording Mode
Switching S / P
STOP & GO supporting
Operating on STOP & GO vehicles

SPECIFICATIONS

Product	IROAD OBD POWER CABLE
Model	IM-300
Input voltage	DC 12~24V
Output Voltage	DC 12~24V, Max 2A
Length	2M
Operating Temperature	-40~85℃
Overcurrent Cut-Off	Min 3.4A
Manufacturer	IROAD MOBILITY CO., Ltd
Country of Origin	South Korea
Certifications	FCC, CE, KC

Instructions Manual

Download
